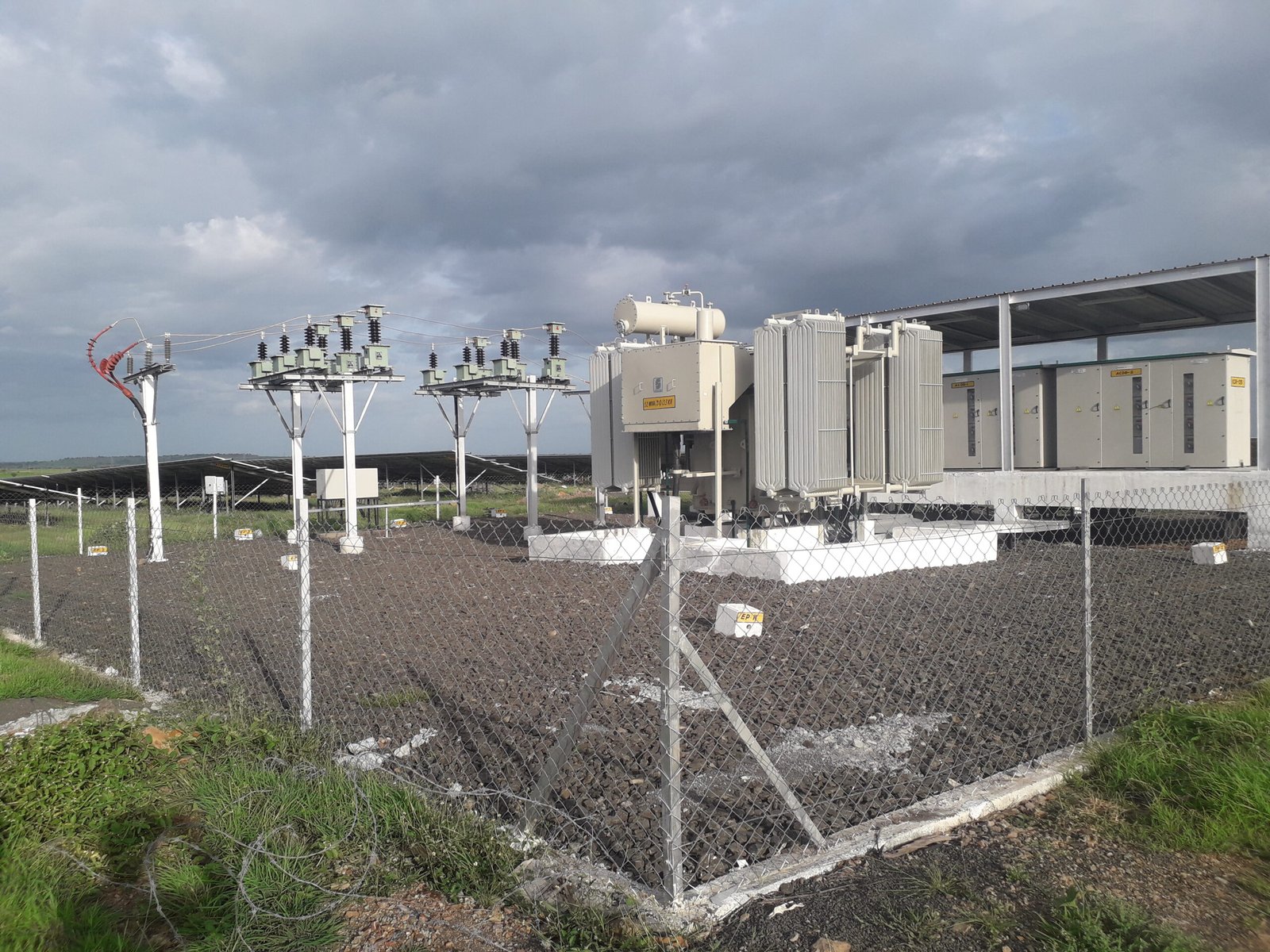

Transformer - Solar System
A. Electrical Outdoor Isolators
Electrical Isolator is a piece of equipment or an arrangement used in devices and power systems to isolate two circuits or load from the power supply. The main function of an electrical isolator is to isolate two different circuits from each other. Or to isolate a part of the circuit from a power system. Generally, an electrical isolator mainly indicates a mechanical switch and they also designed with electrical arrangements. The main design consideration is its contacts should be open to visible. There are so many electrical equipment’s, devices such as circuit breakers, contactors, etc. are available. They also can isolate the circuits. Then why we required Electrical Isolators. The main reason is visibility. We cannot see the contacts of the circuit breaker or contactor if they are open or close. To make sure the circuit is completely disconnected, electrical isolators are used.
B. Introduction: Electrical LT Transformer
The Distribution Transformers are important links in the chain of power distribution systems. The power, which is transmitted at high voltage, stepped down 430 volts with these distribution transformers. These are manufactured in a variety of capacities and voltage ranges.
MARKET POTENTIAL:
The demand for Distribution Transformers is basically related to power generation programme envisaged for the country and the rural electrification. The demand for these transformers is likely to increase considerably. At present about 100 units are in various part of the country.
i) The basis for calculation of production capacity has been taken on single shift basis on 75% efficiency.
ii) The maximum capacity utilization on single shift basis for 300 days a year. During first year and second year of operations the capacity utilization is 60% and 80% respectively. The unit is expected to achieve full capacity utilization from the third year onward.
iii) The salaries and wages, cost of raw materials, utilities, rents etc. are based on the prevailing rates in and around Kanpur. These cost factors are likely to vary with time and location.
iv) Interest on term loan and working capital loan has been taken at the rate of 12% on an average. This rate may vary depending upon the policy of the financial institutions/agencies from time to time.
v) The cost of machinery and equipments refer to a particular make / model and prices are approximate.
vi) The break-even point percentage indicated is of full capacity utilization.
vii) The project preparation cost etc. whenever required could be considered under pre-operative expenses.
viii) The essential production machinery and test equipment required for the project have been indicated. The unit may also utilize common test facilities available at Electronics Test & Development Centres (ETDCs) and Electronic Regional Test Laboratories (ERTLs) and Regional Testing Centres (RTCs).
The following presumptions have been taken in to account –
i) Voltage Range – 11/0.433 KV.
ii) Capacity Range – 25 KVA to 250 KVA.
iii) Basis of calculations – 100 KVA.
QUALITY CONTROL & STANDARDS:
The Bureau of Indian Standard has laid down specifications:
- IS: 2026 (Part-I) –1977 – Power Transformer General.
- IS: 2026 (Part-II) –1977 – Power Transformers Temperature rise.
- IS:2026(Part-III) – 1977–Power Transformers Insulation- Level & Dielectric.
- IS: 1180 –1964 – Three Phase Distribution Transformers up to & Meldin 100 KVA 11 KV outdoor type.
- IS: 1885 (Part XXXVIII) Electro -technical Vocabular
Types of Transformers

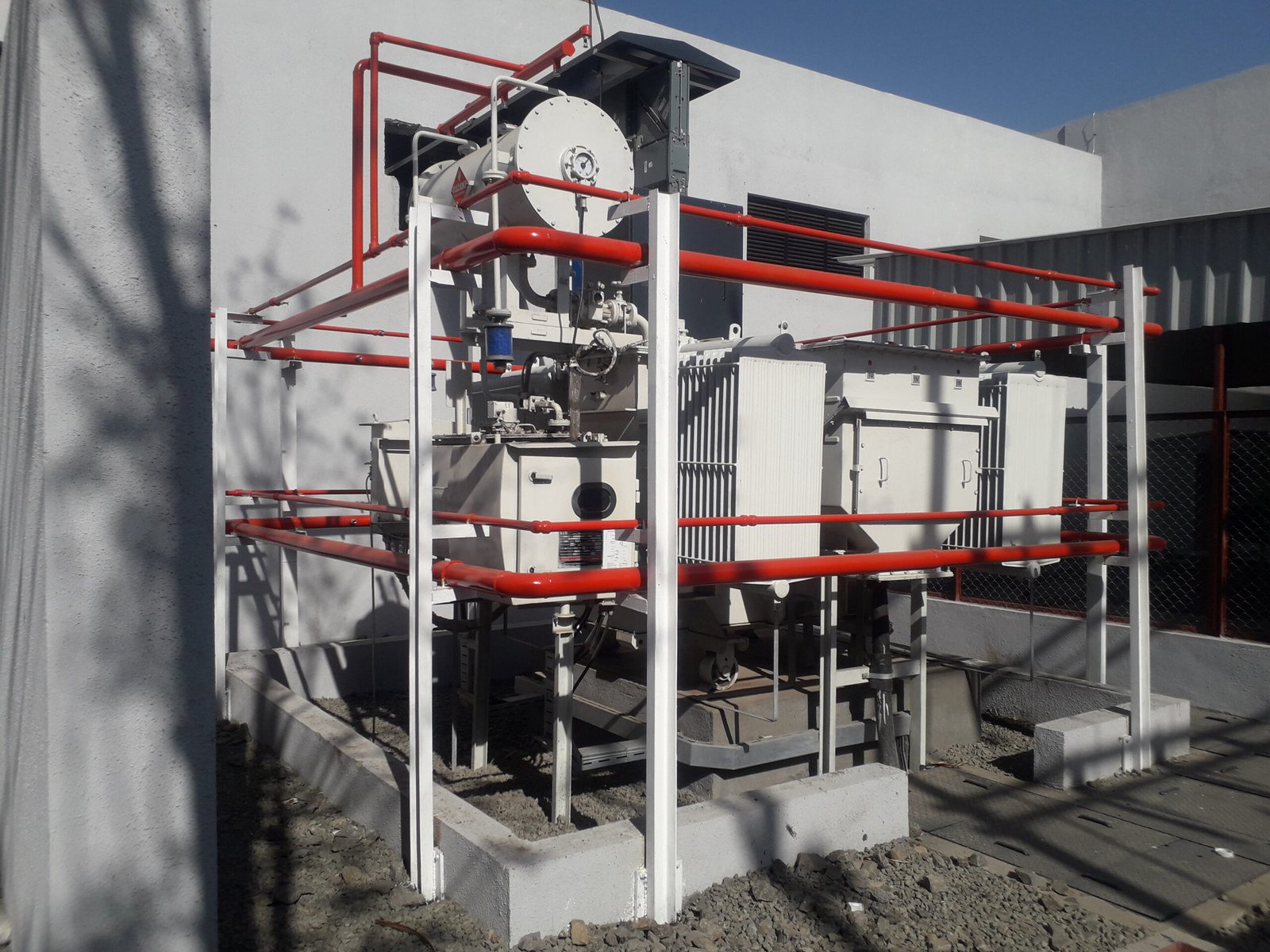

Transformers offer great support to electrical systems in the transmission of electrical energy. Power Transformer is one of the most essential transformers, widely utilized in both industrial and residential applications. Power Transformers are mainly installed for stepping down and stepping up the voltage levels during the distribution of electrical power. With the help of our skilled engineers and industry experts at ABC Transformers, we are manufacturing impeccable quality power transformers with complete precision. Our Power Transformers offer great support for heavy-duty electrical machinery and high-power-consuming electrical appliances. Being one of the prominent power transformer manufacturers in India, we provide step-up, step-down, single-phase, and three-phase power transformers of up to 50,000kVA range. Our power transformers are utilized in several places, including residential buildings, power generation and transmission plants, the steel industry, the cement industry, the mining industry, solar farms, wind farms, data centers, substations, and many others.
Distribution Transformer is one of the most in-demand transformers in India, with high utilization in residential, commercial, and industrial settings. ABC Transformers is the top most prominent Distribution transformers manufacturer in India. Our distribution transformers give optimum performance in altering voltage levels to supply the final voltage for several appliances and equipment. We make use of top-notch electrical components and international standards like ANSI and IEC for fabricating distribution transformers. We supply distribution transformers with multiple voltage classes and up to 5000kVA ratings. Our distribution transformers are best for heavy usage too which makes them apt for industries like the oil & gas industry, mining industry, power transmission plant, construction industry, automobile industry, manufacturing industry, and many more.
ABC Transformers has proved its proficiency in manufacturing technically upgraded and premium quality transformers in India. Along with the technical capabilities, we also focus on environmental challenges. By considering the environmental constraints and restrictions at certain places, we have become a renowned dry-type transformer manufacturer in India. These transformers are highly suitable for indoor use or for use at places where it is restricted to make use of oil-type transformers. We make use of solid insulators to manufacture dry-type transformers. Despite the change in its configuration, voltage class, or insulation material, our dry-type transformers work with the same efficiency. Unlike the other oil-type transformers, they do not emit any harmful or toxic gases. It is one of the reasons why our dry-type transformers are high in demand for indoor use. Some of the industries where we supply our dry-type transformers are the transportation industry, mining industry, petrochemical industry, chemical industry, marine industry, manufacturing industry, and many residential areas.
Among the variety of transformers manufactured by ABC Transformers, the Amorphous Transformer is one of the most energy-efficient transformers. As the name suggests the amorphous transformers are made using amorphous steel which is highly capable of cutting energy wastage. These transformers are mainly used on electrical grids offering excellent efficiency. Our amorphous transformers offer a current rating of up to 1000 kVA and varied voltage ranges. With the help of our highly proficient engineers, we fabricate amorphous transformers using all industry standards. It is one of those transformers which is suitable for both outdoor and indoor electrical applications.
At ABC Transformers, we manufacture transformers for varied applications and settings and inverter transformers are also one such transformer. As the name suggests, these transformers are specifically designed for inverters and are utilized for transforming the input direct current (DC) to output alternating current (AC). ABC Transformers is one of the renowned inverter transformer manufacturers in India, designing efficient performing transformers. Being the special purpose transformers, our professionals conduct thorough research in manufacturing them. For their best utility, the primary side of the inverter transformers are equipped with multiple windings which helps in connecting many inverters at the same time. These transformers are mainly utilized in solar energy and wind energy projects.
ABC Transformers is one of the renowned transformer manufacturers in the industry which supplies transformers for several settings. Among the several transformers, we also produce superior quality single-phase transformers. These transformers use single-phase AC with constant frequency during the transmission of electrical energy. For better performance of Single Phase Transformer, we make use of top-notch electrical components in manufacturing it. We have incorporated the best technology and multi-purpose features in our single-phase transformers for more efficiency. Our Single-Phase transformers are mainly utilized in non-urban areas or at places where low-voltage equipment is used. They are highly suitable for home appliances including televisions, inverters, heating, and many lighting equipment.
C. Introduction: Electrical LF Transformer
Generally electronic equipments like Transistor, tape recorder, television and other sophisticated equipments are operated on low DC voltage. The DC low voltage can be obtained by two ways i.e. (i) Rechargeable / Dry Batteries and (ii) conversion from A.C. supply. Rechargeable battery is used where electricity is not available. This power source has many draw backs and is also costly. As State Government is going to pay more attention on electrifying the city and rural areas so other DC source i.e. from AC is very cheap and easy to handle. This low DC voltage is achieved from high 220 AC voltage by using a transformer along with rectifier and filter. This transformer is called LF step down transformer which reduces AC high voltage to AC low voltage without change of frequency. This slow voltage is rectified and filtered to get DC voltage.
1. MARKET POTENTIAL:
With rapid electrification in the State, the use of tape recorders, two-in-ones, television, transistors and other consumer electronics, the demand for this product is on the increase. Moreover, small transformers are also needed for repairing of electronic items and as such there is enough scope for growth of this product.
